Solar Panel Rain Gutters
- size：standard or custom
- material: Q235,SUS304.
- Anti-Corrosive:Hot Dip Galvanized
- Warranty: 10 years
- wind load: 60m/s
- Delivery time:About 20 Days
- Certification:CE,ISO9001/14001/45001,Rohs,etc
- snow load: 1.4KN/M2
Advantages Of Solar Panel Rain Gutter
1. Efficient drainage
2. Prevent residual pollutants
3. Extend the service life of photovoltaic systems
4. Plays a role in supporting the frame, making the overall component more stable
5. The materials used in photovoltaic water channels are usually recyclable, meet environmental requirements, and reduce their impact on the environment
What Is Solar Panel Rain Gutter?
Solar panel rain gutter trough is installed under the photovoltaic panel, responsible for collecting the water flow on the panel surface, guiding it to the side of the trough, and then discharging it through the drainage system, so as to avoid the water accumulating above the photovoltaic panels, which affects the power generation effect.
Solar panel rain gutter is usually made of zinc-aluminium-magnesium strip steel cold-rolled forming, corrosion-resistant, and has a very good load-bearing capacity.
Product By Feature
Jucai Huixin Can produce Edge-Wrapped Photovoltaic Panel Gutters.

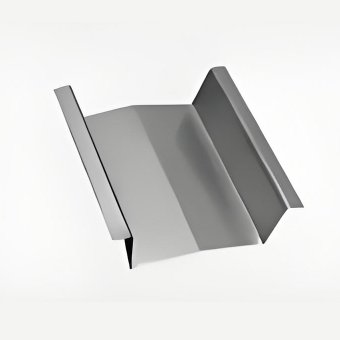

Jucai Huixin Can produce Ridge Solar Panel Rain Gutters.

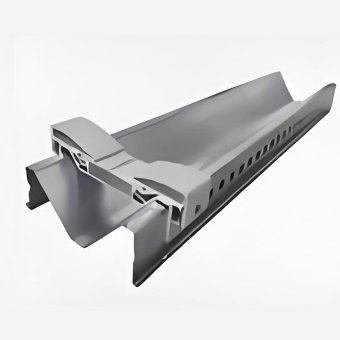

Jucai Huixin Can Produce M Shaped Solar Panel Rain Gutters Of The First Generation.
Jucai Huixin Can produce Edge Wrapped Solar Panel Rain Gutter.
Jucai Huixin can produce Small Solar Panel Rain Gutter.
Jucai Huixin can produce II M Shaped Solar Panel Rain Gutter.
Jucai Huixin can produce W Shaped Solar Panel Rain Gutter.
Jucai Huixin can produce Perforated Solar Panel Rain Gutter On Both Sides.
Jucai Huixin can produce Special Shaped Solar Panel Rain Gutter.
Jucai Huixin can produce W Shaped II Solar Panel Rain Gutter.
How To Produce Solar Panel Rain Gutter?
At Jucai Huixin, Solar Panel Rain Gutter making process mainly have those steps below:
Select qualified Zn Al Mg Coated Steel Coil as the raw material for the processing.
This step is to feed the zinc aluminum magnesium steel strip into the cold forming unit.
After passing the inspection, it will be packaged and stored in the warehouse.
Application
The application scenarios of solar panel rain gutters are very wide, mainly including the following:
solar panel rain gutter is widely used for large scale BIPV Solar Carports.
solar panel rain gutter is widely used for Distributed Photovoltaic Project.
Overview
As a large-scale source factory for the production of solar panel rain gutter, Jucai Huixin can ensure the product quality of solar panel rain gutter at the production end and save customers money in all aspects. The advantages are mainly reflected in the following aspects.
Jucai Huixin is AAA China Integrity Management Enterprise.
The total installed capacity has reached 5GW.
Focusing on photovoltaic brackets, serving the green new energy industry
Jucai Huixin is Innovative technology enterprise.
Economic benefits of photovoltaic power generation
Jucai Huixin Total land area of 30000 square meters
Jucai Huixin can provide one-stop procurement services for photovoltaic users.
Jucai Huixin Meets ISO9001,ISO14001,ISO45001,Rohs,etc.
Custom Solar Panel Rain Gutter Option
The customized service of Solar Panel Rain Gutter can meet the needs of different industries for accuracy, load, and environmental adaptability. The following are the core customization dimensions and technical parameters based on industrial grade application scenarios:
You can flexibly customize the materials of photovoltaic panel rain gutters, such as carbon steel Q235, AL6005, etc.
The maximum length of standard solar panel rain gutter is 6 meters, and it can be customized up to 12 meters (segmented splicing is required, with an error of ≤ 0.02mm/m)
Design construction drawings to clarify the position, angle, and depth of each solar panel rain gutter.
You can flexibly customize the shape and style of solar panel rain gutter.
You can flexibly customize the coating treatment methods for solar panel rain gutters, such as hot-dip galvanizing, painting, etc.
Customers can flexibly customize the punching position according to their own requirements.

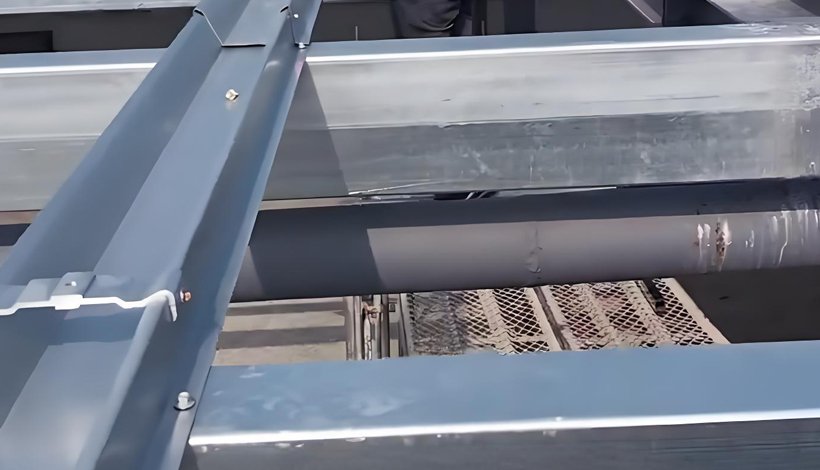

How To Install M Shaped Solar Panel Rain Gutter?
1. Pre embedding: Plan the spacing between water tanks (short side+3mm) according to the size of the photovoltaic panel (such as 2278 × 1134mm), and select corrosion-resistant zinc aluminum magnesium water tanks.
2. Installation: M-shaped water tank overlapping main beam (spacing>155mm), with 40 × 60 reinforced beams added above 3.3 meters; The components are fixed with M8 bolts, leaving expansion joints.
3. Sealing test: Apply silicone waterproofing at the joint and check the overflow port; Water injection test drainage speed, water leakage needs to be resealed.
Attention: Avoid blocking the photovoltaic panels and regularly clean the sink to prevent blockages.
Resource
Partners, here is the company’s product catalogue of Jucai Huixin, click can be downloaded!
Partners, here is an electronic catalog of all the Solar Panel Rain Gutter that Jucai Huixin can produce and supply. Click to download.
Friends, this is the YouTube channel of Jucai Huixin, which contains our most comprehensive installation and usage videos.
More About Our Product
Partners, here is an electronic parameter table for the products you want.
- Model classification
- Material characteristics
- Size parameters
- Other key parameters

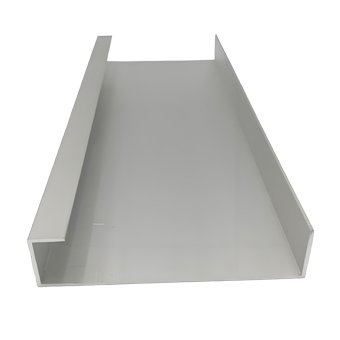

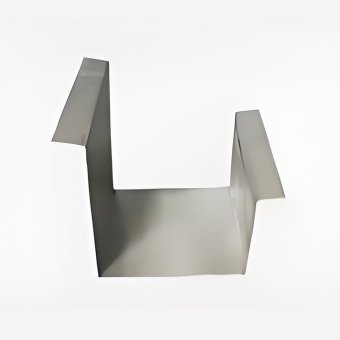

M-type solar panel rain gutter: commonly used in BIPV integrated projects, with a load-bearing capacity of up to 3.5kN/m ² and a width of 340mm
W-shaped solar panel rain gutter: Non porous design, outstanding waterproof effect, width of 123mm
Horizontal solar panel rain gutter: width 138mm, thickness 0.8mm
Zinc aluminum magnesium material: Strong corrosion resistance, in accordance with the standard GB/T2518-2019, with a zinc layer of 275 grams.
Aluminum alloy: anodized treatment, tensile strength ≥ 1500N
Hot dip galvanized or stainless steel: used for customized needs, with adjustable thickness.
Length: Usually customizable within 6 meters, with some options such as Juxin Energy supporting 6.6 meters.
Thickness: 0.5-2.3mm (commonly 1.0-1.7mm for zinc aluminum magnesium materials).
Width: 100mm to 500mm (M-type standard 340mm, W-type 123mm).
Load bearing capacity: M-type water tank can reach 355kg, W-type can withstand wind pressure of 40m/s.
Processing technology: Roll forming, anodizing.
Application scenarios: BIPV integrated roof (waterproof design), color steel tile replacement (with a lifespan of over 25 years)
Related Product
Jucai Huixin can produce all kinds of Single Axis Solar Tracking System.
Jucai Huixin can produce all kinds of Dual Axis Solar Tracking System.
If you have any problem about solar panel rain gutters.
please contact our sales manager quickly: admin@jchxsolar.com
We will provide you with a satisfactory response as soon as possible.
M Type Zn AL Mg Coated 1.39-2.09$/Meter
AAluminum alloy ：2.51-3.62$/Meter
Yes
Yes, We have About 20000 Tons PV panel rain gutter stock.
Generally over 20 years.
Q235A,Q235B For Carbon Steel.
AL6005 AL6065 For aluminum alloy.
