Solar Panel Mounting Rails
- size：standard or custom
- material:Aluminium alloy, carbon steel.
- Anti-Corrosive:Hot Dip Galvanized，anodic oxidation
- Warranty: 10 years
- wind load: 60m/s
- Delivery time:About 20 Days
- Certification:CE,ISO9001/14001/45001,Rohs,etc
- snow load: 1.4KN/M2

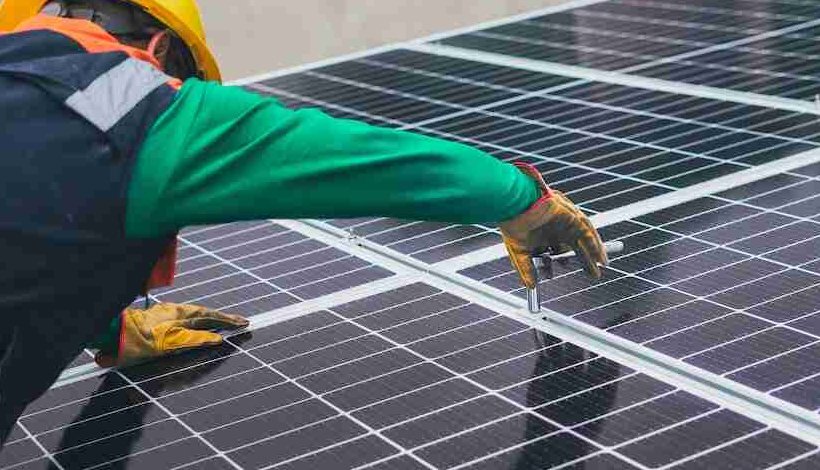

Benefit
1. Enhance structural stability
Specially designed guide rails (such as widened cold-rolled steel) can bear high loads (tested to support 8 540W components/about 460 pounds), have strong deformation resistance, and are suitable for harsh environments such as Gobi and coastal areas.
2. Excellent corrosion resistance
The surface of aluminum alloy naturally forms an oxide layer, which resists air corrosion; At the same time, avoid the problem of galvanic corrosion caused by contact with the aluminum frame of the photovoltaic panel, and extend its service life.
3. Conductivity and safety
Excellent conductivity can guide weak currents within the system, reduce the risk of potential induced decay (PID), and ensure stable component performance.
What Is The difference between solar rails and solar brackets?
Solar panel mounting rail is a linear track component that directly carries components in the bracket system, while photovoltaic bracket is a complete support structure system that includes the guide rail. There are essential differences between the two in terms of functional hierarchy, composition structure, and application scope.
Hierarchical differences in structure and function
Systematic Composition of Bracket
PV bracket is a complete support system composed of columns, supports, beams, guide rails, pressure blocks, etc. It can be classified into ground-type, rooftop-type, water-type, etc. according to the installation scenario, and contains subdivided functional structures such as fixed-type, single-axis/dual-axis tracking-type, and so on.
Special functions of guide rails
As one of the core components of the bracket, the guide rail is mainly used for horizontally fixing photovoltaic panels. Its material is mainly aluminum alloy or C-shaped steel, and it has the following characteristics:
1. Directly bear the weight of the components and transmit it to the bracket body through connectors
2. Cooperate with pressure blocks to achieve rapid installation and spacing adjustment of components
3. Coordinate with the rotation axis in the tracking bracket to achieve angle adjustment
Product By Material
Best corrosion resistance, suitable for large-scale ground-mounted photovoltaic power plant projects.
Resistant to salt spray environment, commonly used in photovoltaic power plant projects in coastal areas.
Mainly used in rooftop photovoltaic support systems, it has good corrosion resistance.
Corrosion resistant, aesthetically pleasing and tidy, with a sturdy and durable structure.
Product By Shapes
At Jucai Huixin, solar panel mounting rail can be classified into those types below.
Standard rails are the most common aluminium alloy rails for photovoltaics and feature a simple structure and easy installation.
Snap-on aluminium alloy H-type PV rail is a new type of PV rail, by changing the connection with the slider nut in order to improve its tensile strength. Compared with the conventional aluminium alloy H-type PV guideway on the market, it has stronger tensile strength and higher cost performance under the same metre weight and price.
The BIPV waterproof mounting solution is a rooftop photovoltaic power generation installation using conventional photovoltaic modules as roof building materials through a W-shaped infusion design.
Has high strength and load-bearing capacity, suitable for roof solar bracket.
Hot Dipped Galvanized U Channel Steel Solar Rail，Strong load-bearing capacity, corrosion-resistant, suitable for large-scale centralized photovoltaic power station projects.
It has strong corrosion resistance and uses most of the photovoltaic roof bracket installation systems.
Y Shaped Solar Panel Mounting Rail is a hot selling type of solar rail.Strong, durable and suitable for rooftop PV mounts.
U Shaped Aluminum Solar Panel Rail，Durable and sturdy, not a common type of photovoltaic guide rail.
U Shape Steel Solar Mounting Rails
At Jucai Huixin, U Shape Steel Solar Mounting Rails making process mainly have those steps below:
The manufacturing materials for U channel steel are selected high-quality steel cails.
This step is the second straightening of the strip steel before being fed into the forming unit.
This step is to feed the strip steel into the roll type cold forming unit for step-by-step forming.
Application
The application scenarios of solar panel mounting rails are very wide, mainly including the following:
solar panel mounting rail is widely used for large scale agricultural photovoltaic power station.
solar panel mounting rail is widely used for Large scale industrial and commercial photovoltaic power station.
solar panel mounting rail is widely used for Distributed Photovoltaic Project.
solar panel mounting rail is widely used for Desert Photovoltaic Power Station.
Overview
As a large-scale source factory for the production of solar panel mounting rails, Jucai Huixin can ensure the product quality of solar panel mounting rails at the production end and save customers money in all aspects. The advantages are mainly reflected in the following aspects.
Jucai Huixin is AAA China Integrity Management Enterprise.
The total installed capacity has reached 5GW.
Focusing on photovoltaic brackets, serving the green new energy industry
Jucai Huixin is Innovative technology enterprise.
Economic benefits of photovoltaic power generation
Jucai Huixin Total land area of 30000 square meters
Jucai Huixin can provide one-stop procurement services for photovoltaic users.
Jucai Huixin Meets ISO9001,ISO14001,ISO45001,Rohs,etc.
Custom Solar Panel Mounting Rails Option
The customized service of Solar Panel Mounting Rails can meet the needs of different industries for accuracy, load, and environmental adaptability. The following are the core customization dimensions and technical parameters based on industrial grade application scenarios:
You can flexibly customize the materials of photovoltaic guide rails, such as carbon steel Q235, AL6005, etc.
The maximum length of standard solar panel railing is 6 meters, and it can be customized up to 12 meters (segmented splicing is required, with an error of ≤ 0.02mm/m)
Design construction drawings to clarify the position, angle, and depth of each spiral pile.
C-type guide rail (depth 20-50mm), U-shaped guide rail (width 35-100mm, height 15-30mm)
Square guide rail (side length 20-80mm) or irregular cross-section.
Common surface treatments for photovoltaic guide rails include hot-dip galvanizing, anodizing, baking paint, and so on. It can increase corrosion resistance.
Customers can flexibly customize the punching position according to their own requirements.
How To Install 30*40mm AL Solar Panel Rails?
The installation of 30*40mm AL Solar Panel Rails can be roughly divided into three simple steps:
- Rail connector
- solar clamp
- mid clamp or end clamp
Resource
Partners, here is the company’s product catalogue of Jucai Huixin, click can be downloaded!
Partners, here is an electronic catalog of all the Solar Mounting Rails that Jucai Huixin can produce and supply. Click to download.
Friends, this is the YouTube channel of Jucai Huixin, which contains our most comprehensive installation and usage videos.
More About Our Product
Partners, here is an electronic parameter table for the products you want.
- Hot-Dip Galvanized PV Rail
- Zn Al Mg Coated Solar Rail
- Zn Al Mg Coated Square Tube
- Aluminum Photovoltaic Rails
| No. | Product Name | Specifications（mm） | Single weight（KG） | lengths（M） | Quantity in stock (pcs) |
| 1 | Hot-dip galvanized U Shaped solar rail average 65 microns | 41*21*1.8 | 7.55 | 6 | inquire by telephone |
| 2 | 41*21*2.0 | 9-9.2 | 6 | inquire by telephone | |
| 3 | 41*21*1.9 | 8.5-8.7 | 6 | inquire by telephone | |
| 4 | 41*41*1.8 | 11.3-11.5 | 6 | inquire by telephone | |
| 5 | 41*41*1.9 | 11.9-12.1 | 6 | inquire by telephone | |
| 6 | 41*41*2.0 | 12.7-12.9 | 6 | inquire by telephone | |
| 7 | 41*41*2.5 | 15.1-15.3 | 6 | inquire by telephone | |
| 8 | 41*52*1.8 | 13-13.3 | 6 | inquire by telephone | |
| 9 | 41*52*1.9 | 13.8-13.9 | 6 | inquire by telephone | |
| 10 | 41*52*2.0 | 14.4-14.7 | 6 | inquire by telephone | |
| 11 | 41*52*2.3 | 15.7-16.6 | 6 | inquire by telephone | |
| 12 | 41*52*2.5 | 17.4-17.6 | 6 | inquire by telephone | |
| 13 | 41*62*1.9 | 15.6-15.8 | 6 | inquire by telephone | |
| 14 | 41*62*2.0 | 16.4-16.7 | 6 | inquire by telephone | |
| 15 | 41*62*2.5 | 19.5-19.8 | 6 | inquire by telephone | |
| 16 | 41*72*1.9 | 17.3-17.7 | 6 | inquire by telephone | |
| 17 | 41*72*2.0 | 18.3-18.5 | 6 | inquire by telephone | |
| 18 | 41*72*2.4 | 22.4-22.7 | 6 | inquire by telephone | |
| 19 | Hot-dip galvanized U Shaped solar rail around 30-40 microns | 41*21*1.7 | 7.4-7.7 | 6 | inquire by telephone |
| 20 | 41*21*1.9 | 8.6-8.9 | 6 | inquire by telephone | |
| 21 | 41*21*2.0 | 8.8-9 | 6 | inquire by telephone | |
| 22 | 41*41*1.6 | 9.9-10.1 | 6 | inquire by telephone | |
| 23 | 41*41*1.7 | 10.5-10.8 | 6 | inquire by telephone | |
| 24 | 41*41*1.8 | 11.2-11.5 | 6 | inquire by telephone | |
| 25 | 41*41*1.9 | 11.7-11.9 | 6 | inquire by telephone | |
| 26 | 41*41*2.0 | 12.3-12.7 | 6 | inquire by telephone | |
| 27 | 41*41*2.3 | 13.6-14.2 | 6 | inquire by telephone | |
| 28 | 41*41*2.5 | 15.1-15.3 | 6 | inquire by telephone | |
| 29 | 41*52*1.7 | 12.1-12.4 | 6 | inquire by telephone | |
| 30 | 41*52*1.8 | 12.5-12.9 | 6 | inquire by telephone | |
| 31 | 41*52*1.9 | 13.5-13.9 | 6 | inquire by telephone | |
| 32 | 41*52*2.0 | 14.6-14.9 | 6 | inquire by telephone | |
| 33 | 41*52*2.3 | 16.4-16.8 | 6 | inquire by telephone | |
| 34 | 41*52*2.5 | 17.3-17.5 | 6 | inquire by telephone | |
| 35 | 41*62*1.7 | 13.5-13.9 | 6 | inquire by telephone | |
| 36 | 41*62*1.8 | 14.3-14.6 | 6 | inquire by telephone | |
| 37 | 41*62*1.9 | 15.3-15.6 | 6 | inquire by telephone | |
| 38 | 41*62*2.0 | 16.4-16.7 | 6 | inquire by telephone | |
| 39 | 41*62*2.3 | 18-18.4 | 6 | inquire by telephone | |
| 40 | 41*62*2.5 | 19.8-20.2 | 6 | inquire by telephone | |
| 41 | 41*72*1.9 | 17-17.2 | 6 | inquire by telephone | |
| 42 | 41*72*2.0 | 17.9-18.2 | 6 | inquire by telephone | |
| 43 | 41*72*2.4 | 21.7-22 | 6 | inquire by telephone |
| No. | Product Name | Specifications（mm） | Single weight（KG） | lengths（M） | Quantity in stock (pcs) |
| 1 | Zinc aluminum magnesium S350/275g | 41*41*2.0 | 12.1-12.4 | 6 | Telephone inquiry |
| 2 | 41*52*2.0 | 14.1-14.4 | 6 | Telephone inquiry | |
| 3 | Zinc aluminum magnesium S250/≥275g | 41*52*1.9 | 13.1-13.2 | 6 | 2400 |
| 4 | 41*52*2.0 | 13.9-14.1 | 6 | 2278 | |
| 5 | 41*41*2.0 | 12.3-12.4 | 6 | 1000 | |
| 6 | 41*41*1.9 | 11.3-11.6 | 6 | 2400 | |
| 7 | Zinc aluminum magnesium low zinc | 41*35*1.4 | 7.6-8 | 6 | Telephone inquiry |
| 8 | 41*35*1.5 | 8.3-8.6 | 6 | Telephone inquiry | |
| 9 | 41*21*1.4 | 5.6-5.9 | 6 | Telephone inquiry | |
| 10 | 41*21*1.5 | 6.5-6.9 | 6 | Telephone inquiry | |
| 11 | 41*21*1.6 | 7.1-7.3 | 6 | Telephone inquiry | |
| 12 | 41*21*1.7 | 7.3-7.6 | 6 | Telephone inquiry | |
| 13 | 41*21*1.8 | 7.7-8 | 6 | Telephone inquiry | |
| 14 | 41*21*1.9 | 8-8.5 | 6 | Telephone inquiry | |
| 15 | 41*21*2.0 | 8.5-9 | 6 | Telephone inquiry | |
| 16 | 41*41*1.4 | 8.3-8.6 | 6 | Telephone inquiry | |
| 17 | 41*41*1.5 | 9.17-9.3 | 6 | Telephone inquiry | |
| 18 | 41*41*1.6 | 9.6-10 | 6 | Telephone inquiry | |
| 19 | 41*41*1.7 | 10.2-10.5 | 6 | Telephone inquiry | |
| 20 | 41*41*1.8 | 10.8-11.1 | 6 | Telephone inquiry | |
| 21 | 41*41*1.9 | 11.3-11.6 | 6 | Telephone inquiry | |
| 22 | 41*41*2.0 | 12.1-12.5 | 6 | Telephone inquiry | |
| 23 | 41*41*2.5 | 14.7-15 | 6 | Telephone inquiry | |
| 24 | 41*52*1.4 | 9.5-10 | 6 | Telephone inquiry | |
| 25 | 41*52*1.5 | 10-10.3 | 6 | Telephone inquiry | |
| 26 | 41*52*1.6 | 11-11.5 | 6 | Telephone inquiry | |
| 27 | 41*52*1.7 | 11.5-11.8 | 6 | Telephone inquiry | |
| 28 | 41*52*1.8 | 12.2-12.5 | 6 | Telephone inquiry | |
| 29 | 41*52*1.9 | 12.9-13.3 | 6 | Telephone inquiry | |
| 30 | 41*52*2.0 | 13.8-14.4 | 6 | Telephone inquiry | |
| 31 | 41*62*1.5 | 11.6-11.8 | 6 | Telephone inquiry | |
| 32 | 41*62*1.6 | 12.4-13 | 6 | Telephone inquiry | |
| 33 | 41*62*1.7 | 13.1-13.4 | 6 | Telephone inquiry | |
| 34 | 41*62*1.8 | 13.7-14 | 6 | Telephone inquiry | |
| 35 | 41*62*1.9 | 14.8-15.2 | 6 | Telephone inquiry | |
| 36 | 41*62*2.0 | 15.5-15.9 | 6 | Telephone inquiry | |
| 37 | Zinc aluminum magnesium high zinc S250 | 41*21*1.5 | 6.7-7 | 6 | Telephone inquiry |
| 38 | 41*21*1.7 | 7.2-7.6 | 6 | Telephone inquiry | |
| 39 | 41*21*1.8 | 7.7-8 | 6 | Telephone inquiry | |
| 40 | 41*21*1.9 | 8-8.4 | 6 | Telephone inquiry | |
| 41 | 41*21*2.0 | 8.5-9 | 6 | Telephone inquiry | |
| 42 | 41*35*1.5 | 8.4-8.7 | 6 | Telephone inquiry | |
| 43 | 41*41*1.4 | 8.2-8.8 | 6 | Telephone inquiry | |
| 44 | 41*41*1.5 | 9-9.3 | 6 | Telephone inquiry | |
| 45 | 41*41*1.6 | 9.8-10 | 6 | Telephone inquiry | |
| 46 | 41*41*1.7 | 10.1-10.5 | 6 | Telephone inquiry | |
| 47 | 41*41*1.8 | 10.9-11.3 | 6 | Telephone inquiry | |
| 48 | 41*41*1.9 | 11.2-11.8 | 6 | Telephone inquiry | |
| 49 | 41*41*2.0 | 12.2-12.4 | 6 | Telephone inquiry | |
| 50 | 41*41*2.2 | 13.6-13.8 | 6 | Telephone inquiry | |
| 51 | 41*41*2.3 | 13.9-14.1 | 6 | Telephone inquiry | |
| 52 | 41*41*2.5 | 15.2-15.9 | 6 | Telephone inquiry | |
| 53 | 41*52*1.4 | 9.5-9.9 | 6 | Telephone inquiry | |
| 54 | 41*52*1.5 | 10.5-10.7 | 6 | Telephone inquiry | |
| 55 | 41*52*1.6 | 11.1-11.5 | 6 | Telephone inquiry | |
| 56 | 41*52*1.7 | 11.5-11.8 | 6 | Telephone inquiry | |
| 57 | 41*52*1.8 | 12.5-12.8 | 6 | Telephone inquiry | |
| 58 | 41*52*1.9 | 13.2-13.6 | 6 | Telephone inquiry | |
| 59 | 41*52*2.0 | 13.8-14.4 | 6 | Telephone inquiry | |
| 60 | 41*52*2.3 | 16-16.3 | 6 | Telephone inquiry | |
| 61 | 41*52*2.5 | 17-17.5 | 6 | Telephone inquiry | |
| 62 | 41*62*1.5 | 13.-13.3 | 6 | Telephone inquiry | |
| 63 | 41*62*1.6 | 12.8-13.2 | 6 | Telephone inquiry | |
| 64 | 41*62*1.7 | 13.8-14.5 | 6 | Telephone inquiry | |
| 65 | 41*62*1.8 | 14.4-14.6 | 6 | Telephone inquiry | |
| 66 | 41*62*1.9 | 15.3-15.6 | 6 | Telephone inquiry | |
| 67 | 41*62*2.0 | 16-16.4 | 6 | Telephone inquiry | |
| 68 | 41*62*2.3 | 18-18.4 | 6 | Telephone inquiry | |
| 69 | 41*62*2.5 | 19.7-20.2 | 6 | Telephone inquiry | |
| 70 | 41*72*1.9 | 16.8-17.2 | 6 | Telephone inquiry | |
| 71 | 41*72*2.0 | 17.6-18 | 6 | Telephone inquiry |
| No. | Product Name | Specifications（mm） | Single weight（KG） | lengths（M） | Quantity in stock (pcs) |
| 1 | Zinc aluminum magnesium coated square tube | 40*40*1.8*100 PCS/Bundle | 11.8-12.4 | 6 | inquire by telephone |
| 2 | 40*40*1.9*100 PCS/Bundle | 12.9-13.2 | 6 | inquire by telephone | |
| 3 | 40*40*2.0*100 PCS/Bundle | 13.3-13.9 | 6 | inquire by telephone | |
| 4 | 40*60*1.8*70 PCS/Bundle | 15.5-15.9 | 6 | inquire by telephone | |
| 5 | 40*60*1.9*70 PCS/Bundle | 16.5-16.7 | 6 | inquire by telephone | |
| 6 | 40*60*2.0*70 PCS/Bundle | 16.6-17.3 | 6 | inquire by telephone | |
| 7 | 40*60*2.5*70 PCS/Bundle | 21.5-21.8 | 6 | inquire by telephone | |
| 8 | 40*80*1.8*50 PCS/Bundle | 18.9-19.3 | 6 | inquire by telephone | |
| 9 | 40*80*1.9*50 PCS/Bundle | 19.6-20.1 | 6 | inquire by telephone | |
| 10 | 40*80*2.0*50 PCS/Bundle | 21.4-21.8 | 6 | inquire by telephone | |
| 11 | 40*80*2.5*50 PCS/Bundle | 26-26.4 | 6 | inquire by telephone | |
| 12 | 50*50*1.8*64 PCS/Bundle | 15.8-16.2 | 6 | inquire by telephone | |
| 13 | 50*50*1.9*64 PCS/Bundle | 16.2-16.6 | 6 | inquire by telephone | |
| 14 | 50*50*2.0*64 PCS/Bundle | 17-17.4 | 6 | inquire by telephone | |
| 15 | 50*50*2.5*64 PCS/Bundle | 21.5-21.9 | 6 | inquire by telephone | |
| 16 | 60*60*1.8*49 PCS/Bundle | 19.2-19.6 | 6 | inquire by telephone | |
| 17 | 60*60*1.9*49 PCS/Bundle | 20.3-20.6 | 6 | inquire by telephone | |
| 18 | 60*60*2.0*49 PCS/Bundle | 20.5-21 | 6 | inquire by telephone | |
| 19 | 50*100*1.8*32 PCS/Bundle | 23.4-24.3 | 6 | inquire by telephone | |
| 20 | 50*100*1.9*32 PCS/Bundle | 25-25.3 | 6 | inquire by telephone | |
| 21 | 50*100*2.0*32 PCS/Bundle | 26-26.3 | 6 | inquire by telephone | |
| 22 | 50*100*2.5*32 PCS/Bundle | 33-33.3 | 6 | inquire by telephone | |
| 23 | 80*80*1.8*25 PCS/Bundle | 25.4-26 | 6 | inquire by telephone | |
| 24 | 80*80*1.9*36 PCS/Bundle | 26.5-27.5 | 6 | inquire by telephone | |
| 25 | 80*80*2.0*25 PCS/Bundle | 28.3-28.7 | 6 | inquire by telephone | |
| 26 | 80*80*2.5*25 PCS/Bundle | 34.9-35.4 | 6 | inquire by telephone | |
| 27 | 100*100*1.8*25 PCS/Bundle | 31.9-33.3 | 6 | inquire by telephone | |
| 28 | 100*100*1.9*25 PCS/Bundle | 34.3-34.6 | 6 | inquire by telephone | |
| 29 | 100*100*2.0*25 PCS/Bundle | 35.9-36.2 | 6 | inquire by telephone | |
| 30 | 100*100*2.5*25 PCS/Bundle | 44.3-44.6 | 6 | inquire by telephone | |
| 31 | 60*120*1.8*28 PCS/Bundle | 29.5-29.8 | 6 | inquire by telephone | |
| 32 | 120*120*2.0*16 PCS/Bundle | 43-43.5 | 6 | inquire by telephone | |
| 33 | 120*120*2.5*16 PCS/Bundle | 53.3-53.7 | 6 | inquire by telephone | |
| 34 | 140*140*2.5*9-16 PCS/Bundle | 65.1-65.7 | 6 | inquire by telephone | |
| 35 | 140*140*3.0*9-16 PCS/Bundle | 74-74.5 | 6 | inquire by telephone |
| No. | Product Name | Specifications（mm） | Single weight（KG） | lengths（M） | Quantity in stock (pcs) |
| 1 | Aluminum rail 6063-T5 high film (15 film) | 30*40*1.12(reinforced) | 2.87-2.89 | 6 | 1500 |
| 2 | Aluminum rail 6063-T5 high film (15 film) | H30*40*1.18 | 2.75-2.85 | 6 | 2250 |
| 3 | Aluminum alloy solar rail 6063-T5 common | 30*40*1.12(reinforced) | 2.547 | 6 | 3841 |
| 4 | Aluminum alloy solar rail 6063-T5 common | 30*40*1.17(reinforced) | 2.62 | 6 | 6402 |
| 5 | Aluminum alloy solar rail 6063-T5 common | H30*40*1.18 | 2.268 | 6 | 3913 |
Related Product
Jucai Huixin can produce all kinds of Single Axis Solar Tracking System.
Jucai Huixin can produce all kinds of Dual Axis Solar Tracking System.
If you have any problem about solar panel mounting rails.
please contact our sales manager quickly: admin@jchxsolar.com
We will provide you with a satisfactory response as soon as possible
Yes
Yes, We have About 20000 Tons PV rails stock.
According to different coatings，solar panel mounting rails have 5 to 25 years lifetime.
Material: Q235 235 MPa
Q355 355MPa
