Fixed Tilt Solar Racking
- size：standard or custom
- material: AL6005,Q235,SUS304.
- Anti-Corrosive:Hot Dip Galvanized,Anodic oxidation.
- Warranty: 10 years
- wind load: 60m/s
- Delivery time:About 20 Days
- Certification:CE,ISO9001/14001/45001,Rohs,etc
- snow load: 1.4KN/M2
Advantages Of Fixed Tilt Solar Racking
1. Simple
The structure is simple, easy to install, and convenient to maintain.
2. Affordable prices
Usually, the price is lower than that of adjustable photovoltaic brackets.
3. Adapt to various terrains
Fixed angle photovoltaic brackets can adapt to various terrains and application scenarios.
4. Good weather resistance
Generally, it has good weather resistance and is not afraid of rain or snow weather.
What Is Fixed Tilt Solar Racking?
Fixed photovoltaic bracket is a bracket that allows photovoltaic arrays to receive solar radiation in a fixed manner. When designing a fixed photovoltaic bracket, it is necessary to refer to various conditions such as local geographical location, environment, and climate, and fix the bracket at an angle that is conducive to receiving sunlight radiation to the maximum extent. Once its position is determined, it usually does not change frequently.
The manufacturing materials for photovoltaic fixed brackets mainly use aluminum alloys and steel structures (such as hot-dip galvanized steel, zinc aluminum magnesium alloys, etc.), which complement each other in terms of performance, cost, and application scenarios.
Rich Types For You Choose

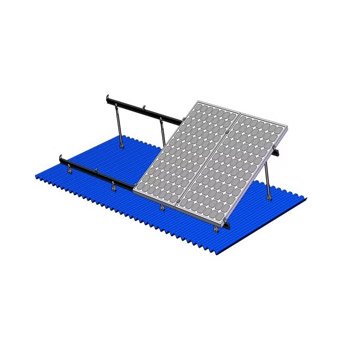

Jucai Huixin Can produce rooftop Aluminum Alloy Fixed Tilt Solar Racking.

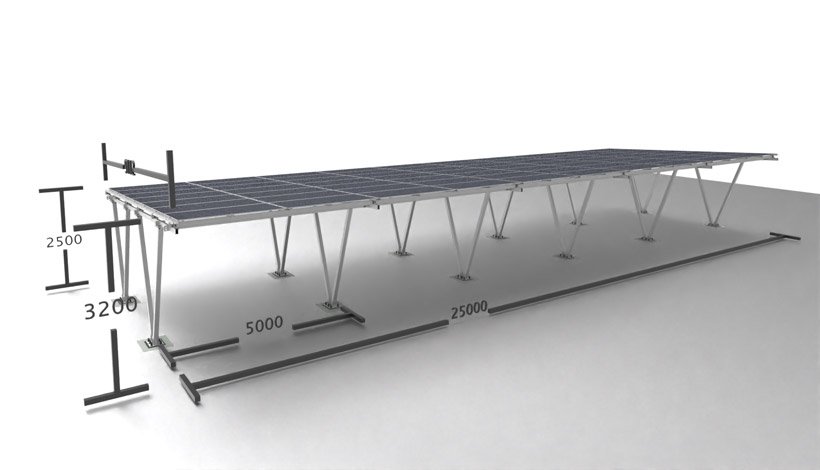

Jucai Huixin Can produce Zinc Aluminum Magnesium Coated Waterproof Fixed Tilt Solar Carport.

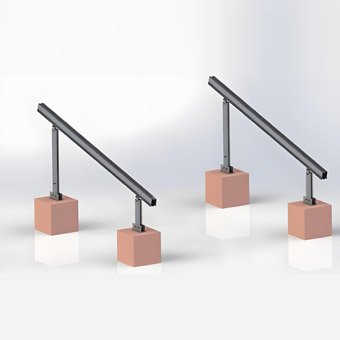

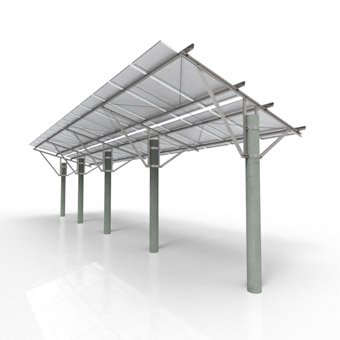

Jucai Huixin Can produce Hot Dipped Galvanized Ground Cement Pile Foundation Fixed Tilt Solar Racking.

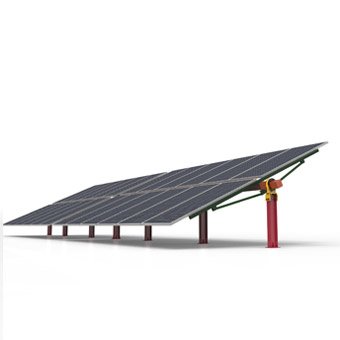

Jucai Huixin Can produce Spray Paint+Hot-Dip Galvanizing Steel Single Column Bracket.

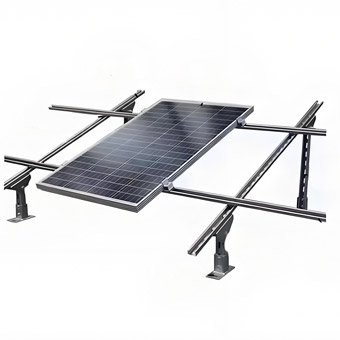

Double row structure, stronger support and more sturdy.
Small footprint, easy installation, and relatively easy maintenance.
No need for steel ground piles, suitable for flat roof photovoltaic systems and ground support systems.

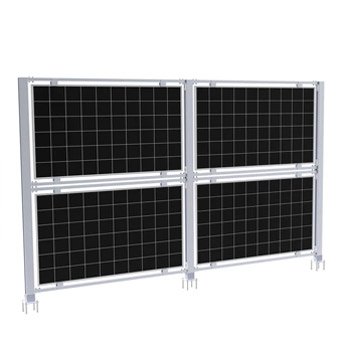

It has the protection and isolation functions of traditional fences, and can also operate independently as a complete photovoltaic power generation system.
Application
The application scenarios of Fixed Tilt Solar Racking are very wide, mainly including the following:
Fixed Tilt Solar Racking is widely used for large scale agricultural photovoltaic power station.
Fixed Tilt Solar Racking is widely used for Large scale industrial and commercial photovoltaic power station.
Fixed Tilt Solar Racking is widely used for Distributed Photovoltaic Project.
Fixed Tilt Solar Racking is widely used for Desert Photovoltaic Power Station.
Overview
As a large-scale source factory for the production of Fixed Tilt Solar Racking, Jucai Huixin can ensure the product quality of Fixed Tilt Solar Racking at the production end and save customers money in all aspects. The advantages are mainly reflected in the following aspects.
Jucai Huixin is AAA China Integrity Management Enterprise.
The total installed capacity has reached 5GW.
Focusing on photovoltaic brackets, serving the green new energy industry
Jucai Huixin is Innovative technology enterprise.
Economic benefits of photovoltaic power generation
Jucai Huixin Total land area of 30000 square meters
Jucai Huixin can provide one-stop procurement services for photovoltaic users.
Jucai Huixin Meets ISO9001,ISO14001,ISO45001,Rohs,etc.
Custom Fixed Tilt Solar Racking Option
The customized service of Fixed Tilt Solar Racking can meet the needs of different industries for accuracy, load, and environmental adaptability. The following are the core customization dimensions and technical parameters based on industrial grade application scenarios:
You can flexibly customize the materials of Fixed Tilt Solar Racking, such as carbon steel Q235, AL6005, etc.
The maximum length of standard Fixed Tilt Solar Racking is 6 meters, and it can be customized up to 12 meters.
Design construction drawings to clarify the position, angle, and depth of each Fixed Tilt Solar Racking.
You can flexibly customize the shape and style of Fixed Tilt Solar Racking.
You can flexibly customize the coating treatment methods for Fixed Tilt Solar Racking, such as hot-dip galvanizing, painting, etc.
Customers can flexibly customize the punching position according to their own requirements.
How To Install Fixed Tilt Solar Racking?
The installation of Fixed Tilt Solar Racking can be roughly divided into 4 simple steps:
1. Install the pile foundation section
2. Installation of bracket columns
3. Install the crossbeam
4. Install photovoltaic panels
Resource
Partners, here is the company’s product catalogue of Jucai Huixin, click can be downloaded!
Partners, here is an electronic catalog of all the Fixed Tilt Solar Racking that Jucai Huixin can produce and supply. Click to download.
Friends, this is the YouTube channel of Jucai Huixin, which contains our most comprehensive installation and usage videos.
Related Product
Jucai Huixin can produce all kinds of Single Axis Solar Tracking System.
Jucai Huixin can produce all kinds of Dual Axis Solar Tracking System.
If you have any problem about Fixed Tilt Solar Racking.
please contact our sales manager quickly: admin@jchxsolar.com
We will provide you with a satisfactory response as soon as possible
For ground solar racks: About 0.027-0.041 $/Watts
For Flat rooftop solar bracket: About 0.021-0.027$/Watts
For sloping roofs solar bracket: about 0.011-0.016$/Watts
For solar carport: about 0.12-0.16 $/Watts
More detail，please contact our sale manager.
Yes
Yes,about 20000 Tons Solar Racking in stock.
The lifespan of Fixed Tilt Solar Racking is generally over 25 years.
Must withstand up to 60 m/s wind speeds,Supports ≥1.4 kN/m² snow pressure.Holds ≥120 kg (e.g., large 400W panels)
